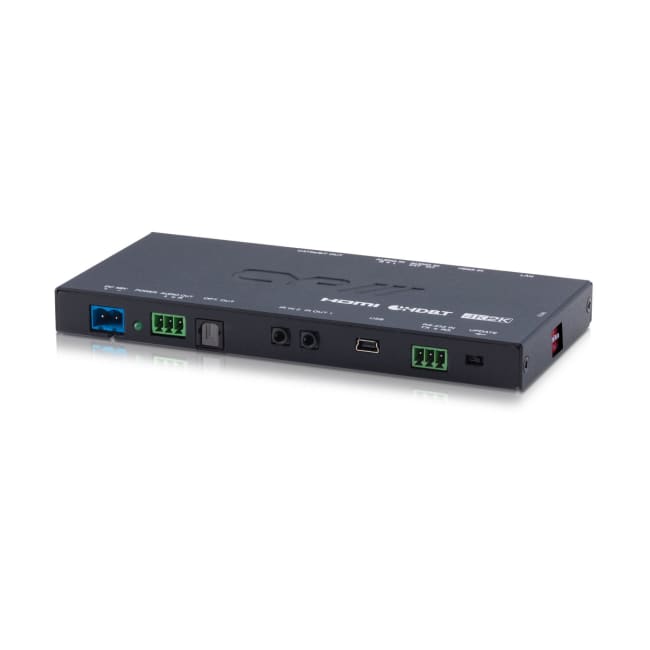

100m HDBaseT Slimline Transmitter (4K, HDCP2.2,PoH,LAN,OAR)
Produktnummer: CYP-PUV-1530TX
inkl. mva.
| Generelle spesifikasjoner | |
|---|---|
| Bruttovekt | N/A kg |
| Produsentens varenummer | PUV-1530TX |
- HDCP 2.2 Compliant
- HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical Audio Return (OAR)
- Supports HDCP repeating and CEC functions
- Supports 3D signals
| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x Phoenix (3 pin) [1x RS-232] 1x RJ45 [1x LAN Serving] 1x USB 3 Type B [1x Service Port Power & Data] |
| Outputs | 1x RJ45 [1x HDBaseT HDMI & Propriety Data] 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM] 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] |
| PSU | PoH |
| PSU: | 48V/0.83A |
| Dimensions | 80mm [W] x 165mm [D] x 20mm [H] |
| Net Weight | 0.335kg |
| Gross Weight | 0.95kg |
